Patek Philippe Ref. 5520P-001 Alarm Travel Time Watch

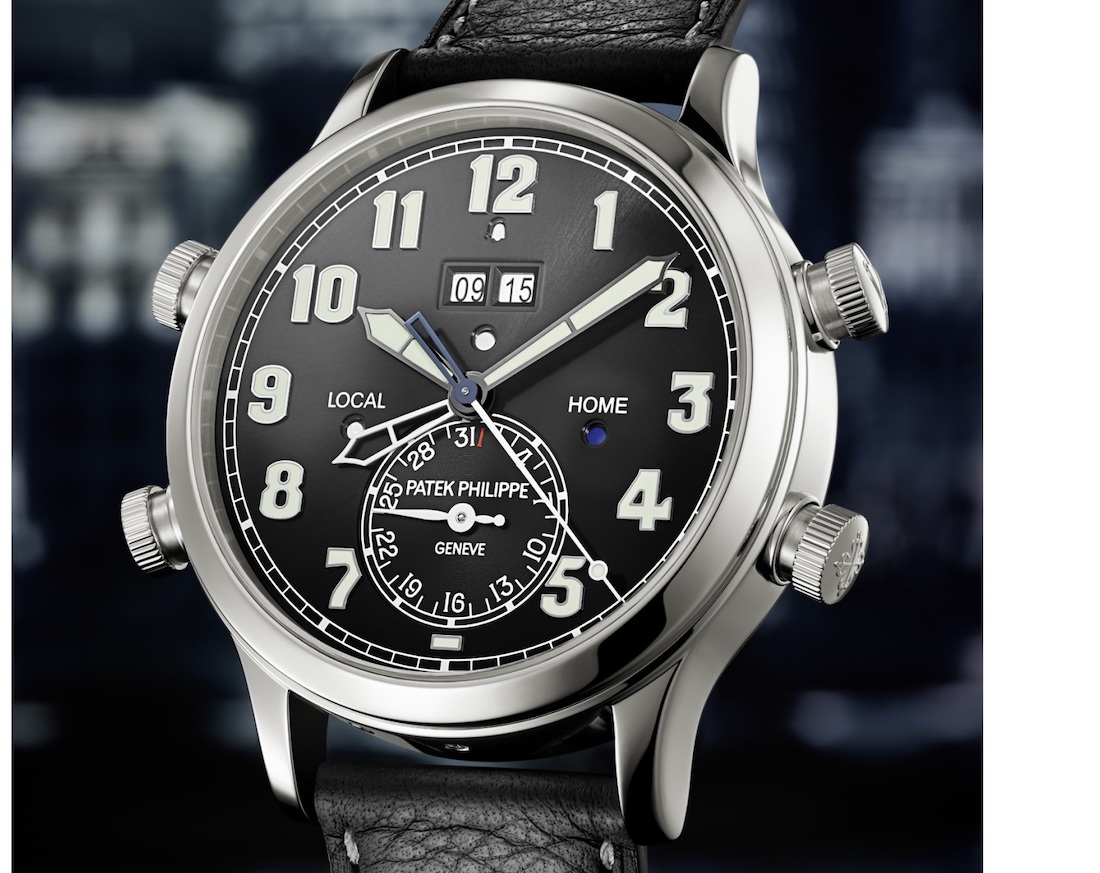

With the release of the new Patek Philippe ref. 5520P-001 Alarm Travel Time watch, one of the industrys shining lights has taken an unusually bold aesthetic step. In September last year, we reviewed the?Patek Philippe Calatrava Pilot Travel Time Ref. 5524R watch, which features twin pushers on the left-hand side of the case. Those pushers were striking, but the single crown in the traditional 3 oclock position means that the visual weight of the case lessens from left to right. This is a visual trick sometimes employed in watchmaking in an attempt to get the watch to follow the natural slimming of the arm from forearm to hand. The quad crown/pusher setup of the 5520P-001 may well be symmetrical but it increases the presence of this watch enormously because it doesnt attempt to pander to the organic. It looks like a Patek Philippe from the future, and thanks to the functionality packed into the 42.2mm platinum case, it is likely to stand up to horological scrutiny for centuries to come.
SpecificationsBrand: Patek PhilippeModel:?Ref. 5520P-001 Alarm Travel TimeDimensions:?42.2mm-wide by 11.6mm-tallWater Resistance:?30 metersCase Material: PlatinumCrystal/Lens: Sapphire crystalMovement:?Caliber AL 30-660 S C FUSFrequency: 28,800vphPower Reserve:?42 hours min-52 hours max (depending on alarm usage)Strap/Bracelet: Platinum pin tang buckle, leather strapPrice Availability:?204,050

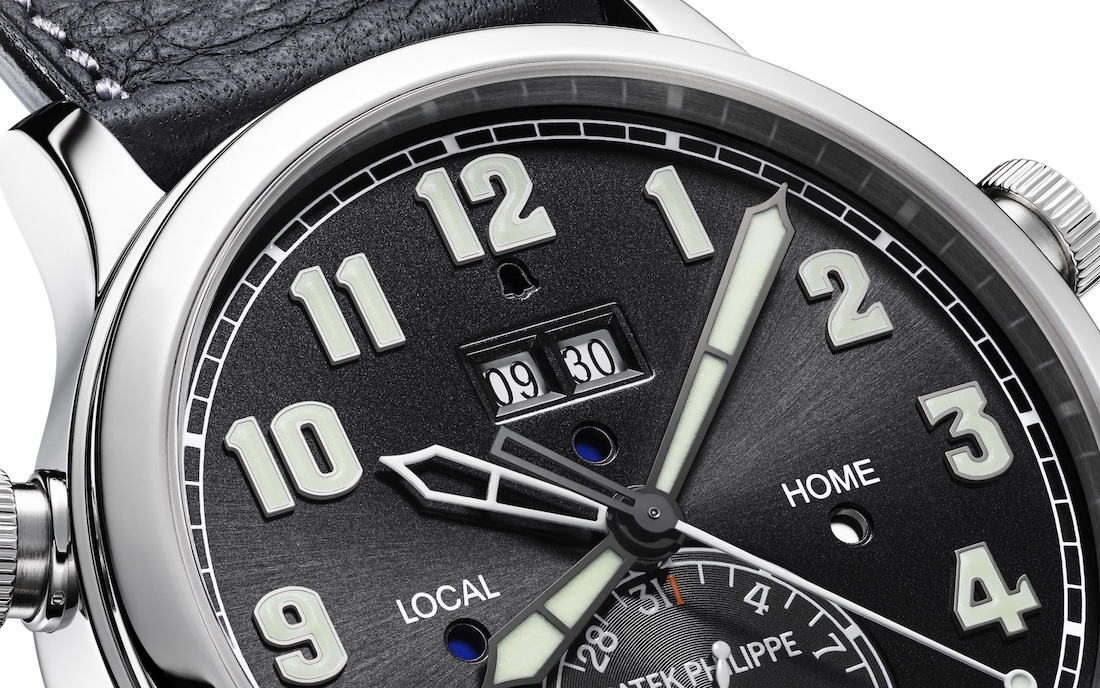

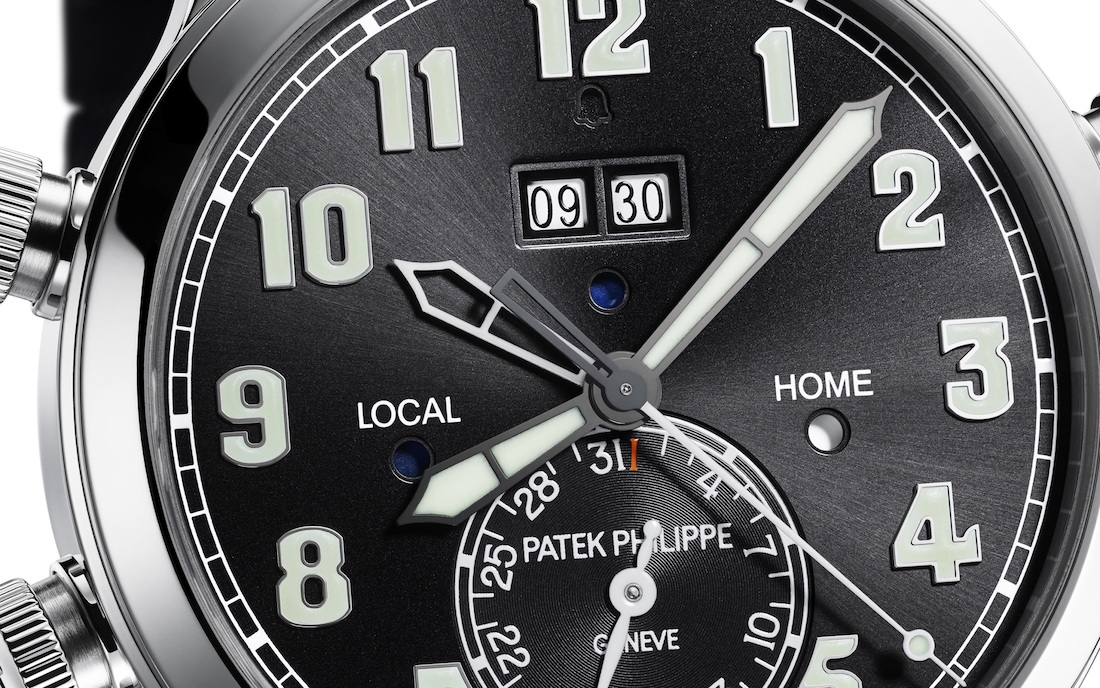

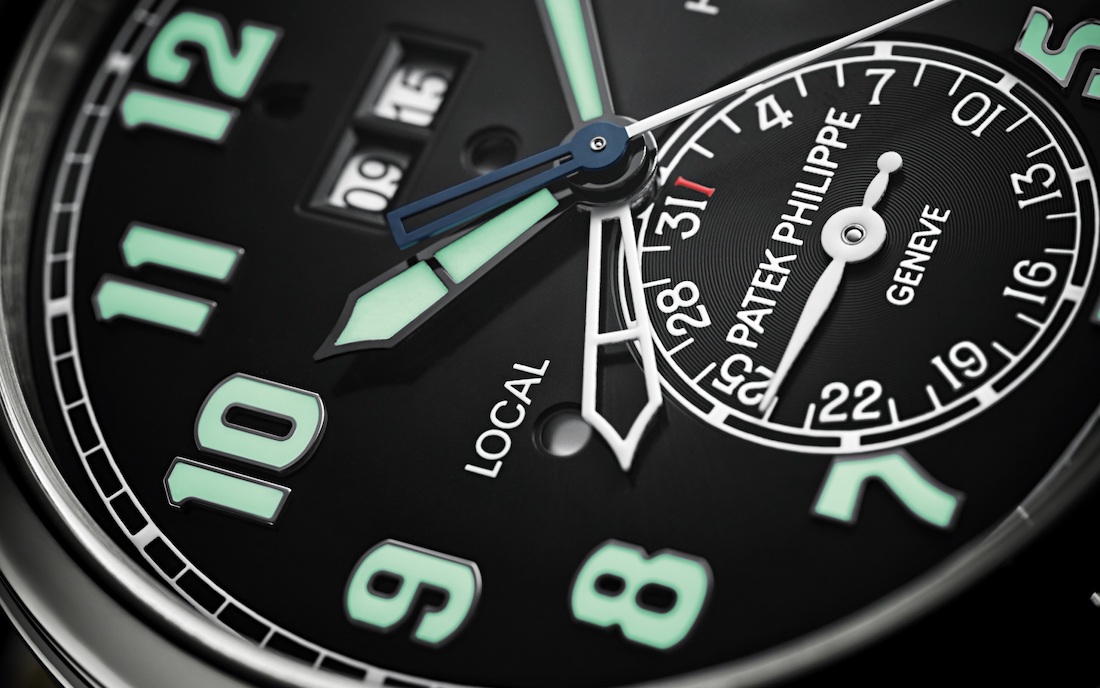

AnalysisThe ebony black sunburst dial displays a lot of information. The time is told by large, laddered hour and minute hands that point to gold applied Arabic numerals generously filled with luminescent material.

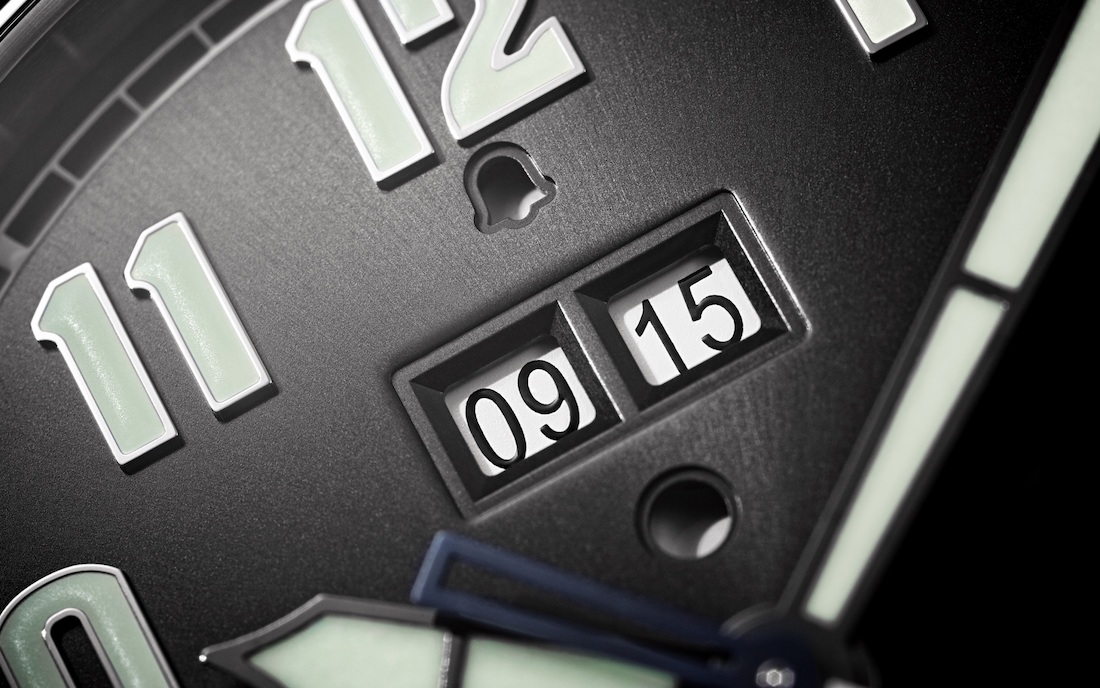

Perhaps the main event of this watch is the alarm function: you can see what time the alarm is set for between the center of the dial and 12 oclock. If the alarm is on, the bell above the alarm window turns white. When the alarm is deactivated, the bell seems to disappear into the black dial. The time the alarm is set to is in 24-hr format, and beneath the alarm readout there is a day/night indicator that flips between white and blue.
Similarly, the Travel Time 24-hour alarm function enables day/night information, as well as the time, itself, to be displayed simultaneously for two time zones. The time zones are labelled local and home and sit above circular apertures identical to the alarm day/night indicator. The alarm is adjusted using the +/- pushers on the left-hand side of the case, while the pusher at 2 oclock is used to switch it on and off.

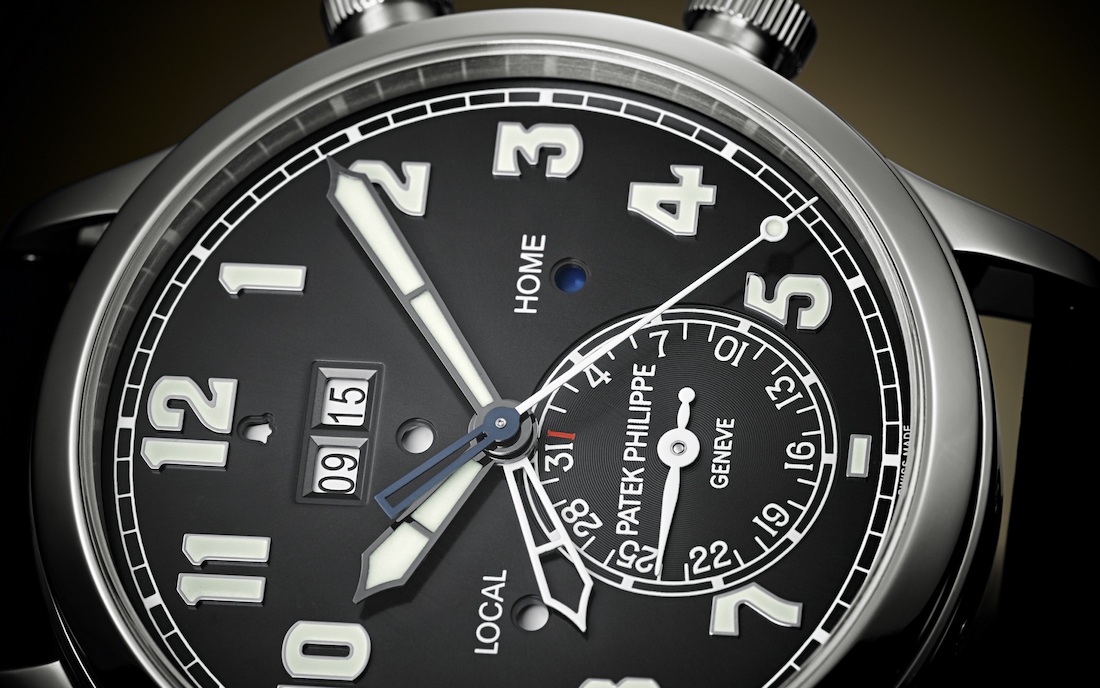

In addition to the twin time zones, read via the solid and skeletonized hour hands, the date for the local time is displayed via a pointer. A sub-dial at 6 oclock shows the seconds by way of a sweeping hand.

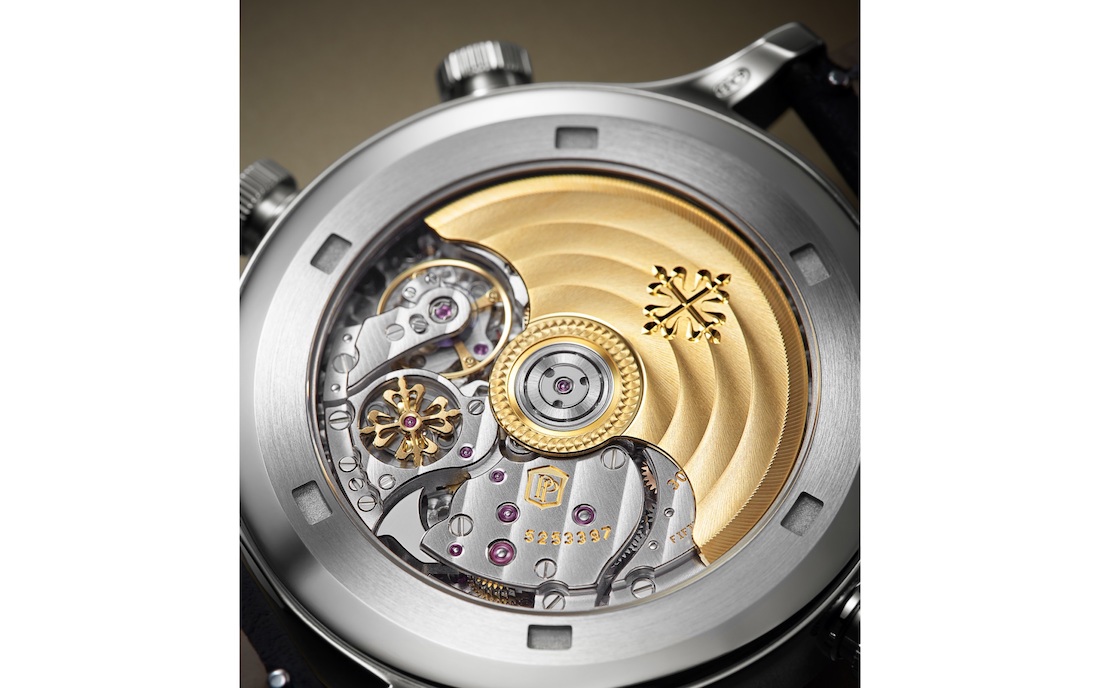

The MovementThe Patek Philippe ref. 5520P-001 Alarm Travel Time is powered by the Caliber AL 30-660 S C FUS, an entirely new integrated movement for which Patek Philippe has registered four patents. It is a complex movement with 574 parts, 52 jewels, a centrally mounted unidirectional winding oscillating weight made from 21k gold, an operating speed of 28,800vph, and a power reserve that fluctuates between 42 and 52 hours, depending on alarm usage.
ConclusionI spent my formative years as a watchmaker designing perfectly symmetrical cases. The crown always posed a problem to my younger mind; it seemed to imbalance the whole case. It wasnt until many years later and a total revision of my tastes that I learned to love utility, form following function. The Patek Philippe Travel Time 5520-001 manages to do what I never could by completely letting go of conventions. It is so unabashedly symmetrical and so wonderfully complex that I cant help but stare at the dial in wonder. It will be fascinating to see this piece on the wrist. Only then will it be possible to tell if the symmetrical silhouette is a hit or whether it jars against a human backdrop. If youd like to see one of these on your wrist, it will cost you 204,050 for the pleasure. Find out more at patek.com
